A modified starch production line converts native starch into functional ingredients. It turns corn, cassava, potato, wheat, or tapioca starch into products used in food, paper, oil drilling, pharmaceuticals, and industrial applications. Most modern lines use a twin-screw extruder. Heat, pressure, and shear gelatinize or modify the starch in one continuous, automated workflow.
But choosing the right line is rarely simple. Buyers must match modified starch manufacturing process, equipment capacity, modification method, raw material, and downstream application. They must also balance upfront investment against operating costs and certification requirements. The wrong configuration can cause inconsistent quality, higher energy bills, and missed market opportunities.
This guide explains how a modified starch production line works. You will learn what equipment you need, how modification methods map to end products, and how to size a line for your business. Whether you are launching a new starch plant or upgrading an existing operation, this article gives you a practical framework for making the right investment.
Key Takeaways
- A modified starch production line typically runs raw starch through mixing, extrusion or chemical modification, drying, grinding, screening, and packaging in one continuous flow.
- Twin-screw extrusion is the dominant physical modification method because it delivers high capacity, continuous operation, and precise control over starch gelatinization and viscosity.
- Capacity ranges from 100 kg/h pilot lines to 1,000+ kg/h industrial systems, with investment levels scaling from roughly 15,000to15,000to150,000+ for extrusion-based lines.
- The best line configuration depends on your target application: food-grade pregelatinized starch, oil-drilling starch, paper/textile sizing starch, or pharmaceutical excipients each have different process requirements.
- CE, ISO, SGS, BV, and food-grade SUS 304 construction are critical compliance benchmarks when exporting or supplying food and pharmaceutical markets.

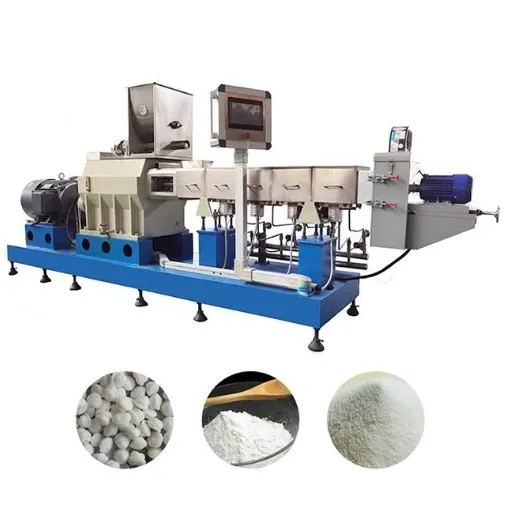

What Is Modified Starch?
Modified starch is starch that has been physically, chemically, or enzymatically treated to change its native properties. Native starch comes directly from corn, cassava, potato, wheat, or tapioca. It has limits. It can retrograde, lose viscosity under heat, break down during freezing and thawing, or fail to dissolve in cold water.
Modification solves these problems. It changes the starch’s gelatinization temperature, viscosity, freeze-thaw stability, film-forming ability, transparency, or solubility. The result is a functional ingredient used across dozens of industries.
There are three main categories of starch modification:
- Physical modification: Heat, moisture, pressure, or shear change starch structure without chemicals. Pregelatinization by extrusion is the most common example.
- Chemical modification: Acids, oxidizers, esterifying agents, or etherifying agents create cross-linked, oxidized, acetylated, or cationic starches.
- Enzymatic modification: Enzymes break starch chains into maltodextrins, glucose syrups, or resistant starch fractions.
Each category needs different equipment. A food manufacturer making instant soup thickener needs a very different line from a paper mill producing cationic starch. That is why the first question when buying a modified starch production line is not “what is your price?” but “what kind of modified starch do you need to produce?”
When Raj Patel, a procurement manager at a Mumbai-based food ingredients company, began evaluating lines in 2024, he assumed all modified starch equipment was interchangeable. His first supplier quote was for a general-purpose extrusion line.
Only after his R&D team tested samples did he realize the line could not achieve the cold-water solubility his instant-beverage customers required. A second consultation focused on screw configuration, barrel temperature zones, and moisture control. It delivered the right pregelatinized starch in three trial runs.
Raj’s lesson: define the end product before you configure your modified starch production line.
How a Modified Starch Production Line Works
A complete modified starch production line moves material through a sequenced process. Configurations vary by modification method and capacity. The standard extrusion-based workflow looks like this:
- Raw material intake and weighing, Native starch is fed from storage silos or bags into a weighing system.
- Mixing, Starch is blended with water and additives to reach the target moisture content.
- Conveying, A screw or vacuum conveyor feeds conditioned starch into the extruder hopper.
- Extrusion / modification, The twin-screw extruder applies heat, pressure, and shear to modify starch structure.
- Cooling and conveying, Extruded starch pieces travel by air conveyor to the drying section.
- Drying, A multi-layer belt dryer reduces moisture from 30–35% down to below 16%.
- Grinding / pulverizing, Dried starch is milled to the required particle size, often 60–120 mesh.
- Screening, A vibrating screener classifies particles and returns oversize material for regrinding.
- Packaging, An automatic packing machine bags the finished modified starch for storage or shipment.
This continuous design makes modern extrusion lines efficient. Material enters as raw starch and exits as packaged product with minimal handling, reduced labor, and consistent quality.
For chemically modified starches, the workflow is different. The starch is first dispersed into a slurry, then reacted under controlled pH and temperature. It is washed, dewatered, dried, and milled.
These lines need reactors, centrifuges, washing systems, and dryers rather than extruders. Most buyers entering the modified starch market start with extrusion-based physical modification. The capital investment is lower and the process is simpler to operate.
Want to see how pregelatinized starch fits into this workflow? Read our dedicated guide on the Pre Gel Starch Production Line for a complete pregelatinized starch production line layout and model specifications.
Key Equipment in a Modified Starch Production Line
Every modified starch processing equipment setup is a system, not a single machine. Each component plays a specific role in quality, throughput, and operating cost. Here is what you should expect in a standard extrusion-based modified starch production line.
Mixer
The mixer blends raw starch with water and any additives. Batch mixers are common for smaller lines, while continuous mixers feed high-capacity systems. Precise moisture control at this stage is critical because the extruder performance depends on starting moisture content, typically 15–20% for pregelatinized starch.
Screw Conveyor
A screw conveyor moves conditioned starch from the mixer to the extruder hopper. It must feed consistently. Variations in feed rate cause temperature and pressure fluctuations inside the extruder, which leads to inconsistent product quality.
Twin-Screw Extruder
The extruder is the heart of the line. Co-rotating twin-screw extruders dominate the market. As the core modified starch extruder machine, they offer excellent mixing, controlled shear, and flexible screw configurations.
Barrel sections can be heated or cooled independently. Die plates shape the extrudate before it exits into atmospheric pressure.
Air Conveyor
After extrusion, the hot expanded starch is fragile. It must be conveyed gently to the dryer. Air conveyors use controlled airflow to transport material without breaking it into fines.
Multi-Layer Belt Dryer
Drying is where final moisture is set. Multi-layer mesh belt dryers allow hot air to pass through the product bed in counter-current or cross-flow arrangements. Temperature is usually adjustable from room temperature to 200°C. Target final moisture is typically below 16%, though some industrial applications require below 10%.
Grinder / Pulverizer
The dried extrudate is too coarse for most applications. A hammer mill, pin mill, or ultrafine pulverizer reduces particle size to the target mesh. Dust collection is essential here for safety and yield.
Vibrating Screener
A vibrating screener separates particles into size fractions. Oversize particles return to the grinder. Consistent particle size is important for end users who need predictable hydration and viscosity.
Automatic Packaging Machine
Finished modified starch is packed into 25 kg bags, big bags, or smaller retail pouches depending on the market. Packaging systems often include weighing, sewing, and conveying functions.
Control System
Modern lines use PLC-based control systems with touch-screen interfaces. Operators can set and monitor temperature, screw speed, feed rate, dryer temperature, and line speed from a central panel. Data logging supports quality traceability and process optimization.
Twin-Screw Extruder: The Core of Modern Starch Modification
If you understand the twin-screw extruder, you understand most of what matters in a modern modified starch production line. The extruder transforms native starch through a combination of thermal energy, mechanical shear, and pressure.
How Extrusion Modifies Starch
Inside the extruder barrel, starch is subjected to:
- Temperature: 120–220°C, depending on the modification target.
- Pressure: 0.5–10 MPa before the die.
- Shear: Rotating screws break hydrogen bonds and partially fragment starch molecules.
- Moisture: Typically 15–20%, though some processes run lower or higher.
Under these conditions, starch granules lose their crystalline structure, absorb water, and gelatinize. This extrusion cooking step is what gives pregelatinized starch its cold-water solubility. The result is pregelatinized starch with enhanced cold-water solubility, altered viscosity, and modified digestibility.
Research published in MDPI Foods details how extrusion temperature, moisture, and shear change starch molecular structure. For food applications, this means instant thickening. For oil drilling, it means rapid hydration in drilling mud.
Key Process Parameters
| Parameter | Typical Range | Impact on Product |
|---|---|---|
| Barrel temperature | 120–220°C | Higher temperature increases gelatinization and reduces viscosity. |
| Moisture content | 15–20% | Lower moisture increases shear and mechanical modification. |
| Screw speed | 200–600 rpm | Higher speed increases shear and shortens residence time. |
| Feed rate | Matched to capacity | Inconsistent feed causes temperature swings. |
| Die diameter | 1–10 mm | Smaller dies increase pressure and expansion. |
| Residence time | 20–90 seconds | Longer time increases thermal modification. |
Screw Configuration Matters
Not all twin-screw extruders use the same screw design. Conveying elements, kneading blocks, and reverse elements can be arranged to control mixing intensity, shear, and residence time. A line designed for gentle pregelatinization uses a different screw profile than one built for high-shear oil-drilling starch.
This is why working with an experienced extrusion equipment supplier matters. Off-the-shelf configurations often work for standard products, but specialized starches require tailored screw and barrel designs.
Starch Modification Methods & What Each Line Produces
Different modification methods produce different functional starches, so the design of your modified starch production line must match your target product. Industry overviews from StarchProduction.com map common equipment configurations to end-product categories.
Physical Modification
Pregelatinization is the most common physical modification. Native starch is cooked and dried so it swells and thickens in cold water. It is used in instant foods, baby nutrition, and as a binder in oil drilling and construction.
A physical modified starch production line for pregelatinization needs: mixer, twin-screw extruder, dryer, grinder, and packager.
Heat-moisture treatment modifies starch at high temperature and limited moisture without gelatinizing it fully. It improves thermal stability and is used in some resistant starch products.
Chemical Modification
Oxidized starch is made by treating starch with oxidizing agents. It has lower viscosity, improved clarity, and better adhesion. Paper and textile industries use it heavily.
A chemical modified starch production line needs: reaction tank, washing system, centrifuge or filter press, dryer, and grinder.
Cross-linked starch uses reagents to create bonds between starch chains. This improves stability under heat, acid, and shear. It is common in canned foods, salad dressings, and frozen products.
Esterified and etherified starches include acetylated, hydroxypropyl, and cationic starches. They offer freeze-thaw stability, improved clarity, and charge properties for paper coating and pharmaceutical binders.
Enzymatic Modification
Enzymes convert starch into maltodextrins, syrups, or resistant starch. These lines use hydrolysis reactors, enzyme dosing systems, and purification equipment rather than extruders.
Choosing by Product
| Modified Starch Type | Modification Method | Typical Equipment | Main Applications |
|---|---|---|---|
| Pregelatinized starch | Physical extrusion | Twin-screw extruder line | Instant foods, oil drilling, construction |
| Oxidized starch | Chemical oxidation | Reactor, washer, dryer | Paper, textiles, adhesives |
| Cross-linked starch | Chemical cross-linking | Reactor, washer, dryer | Food canning, dressings, frozen foods |
| Cationic starch | Chemical etherification | Reactor, washer, dryer | Paper coating, sizing |
| Maltodextrin | Enzymatic hydrolysis | Hydrolysis reactor, evaporator, dryer | Beverages, nutrition |
If you are unsure which modified starch manufacturing process fits your market, our dedicated process page breaks down the technical workflow in more detail.
Modified Starch Applications by Industry
The modified starch applications covered below explain why the global market is valued at approximately USD 13.9–16.7 billion in 2025. Each industry values different properties. That is why application knowledge should drive your modified starch production line selection.
Food and Beverage
Modified starch acts as a thickener, stabilizer, gelling agent, fat replacer, and texturizer. Common uses include:
- Instant soups and sauces that must thicken in hot water without lumping.
- Bakery fillings that remain stable during baking and cooling.
- Frozen foods that resist syneresis (weeping) during freeze-thaw cycles.
- Baby foods and nutrition powders that need easy digestion and dispersion.
A food-grade modified starch production line must use stainless steel contact surfaces, typically SUS 304, and meet HACCP-aligned design principles.
Oil Drilling
In water-based drilling fluids, pregelatinized starch controls fluid loss, builds a thin filter cake, and reduces friction. Drilling starch must hydrate quickly in saline or high-pH conditions and maintain viscosity under downhole temperature and pressure.
An oil-drilling modified starch production line often emphasizes high-shear extrusion to produce starches with rapid cold-water solubility and stable viscosity.
Paper Industry
Cationic and oxidized starches improve paper strength, surface quality, and printability. They are used as surface sizing agents and coating binders. Paper mills need starches with precise viscosity and charge density, which usually requires chemical modification rather than simple extrusion.
Textiles
Warp sizing starch protects yarn during weaving. Modified starches must form a strong, flexible film that washes out easily after weaving. Oxidized and esterified starches are common choices.
Pharmaceuticals
Modified starch serves as a tablet binder, disintegrant, diluent, and excipient. Pharmaceutical starches require high purity, consistent particle size, and compliance with pharmacopeial standards.
Construction and Industrial
Pregelatinized starch binds gypsum boards, improves workability in putty powders, and acts as an adhesive in building materials. Industrial binders for charcoal briquettes also use modified starch as a natural binder.
Raw Materials: Corn, Cassava, Potato, Wheat & Tapioca
Your raw starch source affects modified starch production line settings, product quality, and market positioning. Most extrusion-based lines can handle multiple sources, but each has characteristics you should understand.
Corn Starch
Corn starch is the most widely used raw material globally. It has a neutral flavor, consistent supply, and relatively low cost. Corn starch produces pregelatinized starches with moderate viscosity and good clarity, making it ideal for food and industrial applications.
Cassava / Tapioca Starch
Cassava and tapioca starches are popular in Southeast Asia, Africa, and South America. They produce starches with high clarity, low protein content, and good freeze-thaw stability. Tapioca-based modified starches are preferred in high-quality food and adhesive applications.
Potato Starch
Potato starch has large granules and high swelling power. It produces very viscous pastes with excellent clarity. However, potato starch is more expensive than corn or cassava, so it is usually reserved for premium applications.
Wheat Starch
Wheat starch is a byproduct of gluten production. It is less common for dedicated modified starch lines but can be used for specific food and industrial products.
Preprocessing Requirements
Most modified starch production lines require native starch as input, not fresh roots or grains. Fresh cassava or potatoes must first pass through a separate starch extraction line. If you plan to process fresh tubers, you need both an extraction line and a modification line.
Maria Santos, a project manager in Brazil, learned this the hard way. In 2023 she ordered a modified starch line assuming it could process fresh cassava directly.
When the equipment arrived, her team discovered the extruder needed dry cassava starch flour, not grated root. A six-month delay followed. She added washing, grinding, and centrifuge equipment to handle fresh tubers.
Her advice to new buyers: confirm whether your line starts with starch flour or raw agricultural material.

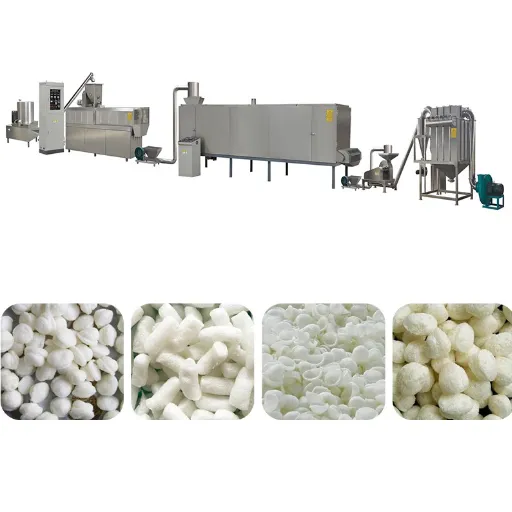

Choosing the Right Modified Starch Production Line
Selecting a modified starch production line requires balancing technical requirements, commercial constraints, and supplier capability. Use this framework to structure your decision.
Define Your Product First
Before comparing quotes, answer these questions:
- What type of modified starch will you produce? (pregelatinized, oxidized, cationic, etc.)
- What is your target application? (food, paper, oil drilling, pharma, etc.)
- What viscosity, solubility, and particle size does your customer require?
- What production capacity do you need now, and how might it scale in three to five years?
Capacity Planning
| Scale | Typical Capacity | Suitable For |
|---|---|---|
| Pilot / lab | 10–50 kg/h | Recipe development, sample production |
| Small commercial | 100–200 kg/h | Startups, niche markets, regional supply |
| Medium commercial | 300–500 kg/h | Growing producers, multi-product lines |
| Industrial | 800–1,500+ kg/h | Large manufacturers, export production |
Buying too small limits growth. Buying too large increases capital cost and energy consumption before demand justifies it. Many suppliers offer modular lines that let you scale by adding extruder capacity or dryer length.
Automation and Labor
Semi-automatic lines may need 4–6 operators per shift. Fully automatic PLC-controlled lines can run with 2–3 operators per shift. Over a five-year period, labor savings from automation often justify the higher initial investment.
Certifications and Material Standards
For food and pharmaceutical markets, confirm that contact surfaces are food-grade SUS 304 stainless steel and that the design supports HACCP cleaning. For export markets, ask about CE, ISO 9001, SGS, and BV certifications.
Supplier Evaluation Checklist
- How many years of experience does the production line manufacturer have in starch extrusion specifically?
- Can they provide references or case studies in your application?
- Do they offer recipe development and trial production before purchase?
- What is included in installation, commissioning, and training?
- How quickly can they supply spare parts and technical support?
- Is the line customizable for voltage, raw material, and capacity?
Red Flags
- Suppliers who cannot explain how screw configuration affects product quality.
- Quotes that do not specify motor brands, control system brands, or material grades.
- No provision for trial runs or recipe support.
- Unclear warranty terms or limited spare parts availability.
If you need help matching a line to your product goals, contact our engineering team for a customized production line proposal.
Cost, ROI & Scaling Decisions
Understanding the total cost of ownership of a modified starch production line helps you compare quotes accurately and plan payback.
Equipment Investment Ranges
These figures are estimates for extrusion-based modified starch production lines based on current market listings. Actual prices depend on configuration, automation level, and supplier.
| Capacity Range | Estimated Investment (USD) | Typical Use Case |
|---|---|---|
| 100–150 kg/h | 15,000–15,000–35,000 | Pilot or small commercial line |
| 200–400 kg/h | 30,000–30,000–60,000 | Small to medium producer |
| 500–800 kg/h | 50,000–50,000–100,000 | Medium industrial line |
| 1,000–1,500 kg/h | 80,000–80,000–150,000+ | Large industrial line |
| Wet chemical modification plant | 500,000–500,000–2,000,000+ | Large commodity starch plant |
Operating Cost Factors
- Power: Extrusion lines consume 60–180 kW of real power depending on capacity. Energy-efficient motors and dryers reduce long-term cost.
- Labor: Automation level determines staffing needs.
- Raw materials: Native starch usually represents the largest single cost.
- Maintenance: Wear parts include screws, barrels, dies, and dryer belts. Budget 3–5% of equipment cost annually for maintenance.
- Packaging: Bags, labels, and sealing materials add to per-unit cost.
Scaling Signals
You should consider scaling capacity when:
- Consistent demand exceeds 80% of current line capacity.
- Customers request grades or applications your current line cannot produce.
- Energy cost per ton starts rising because the line is running beyond its efficient range.
- You are entering a new export market with higher volume requirements.
Payback Timeline
For a well-run extrusion-based modified starch line, payback typically ranges from 18 to 36 months. The exact timeline depends on product margin, local energy cost, and capacity utilization. High-value specialty starches such as pharmaceutical or oil-drilling grades can pay back faster than commodity food thickeners.
Quality Control, Safety & Certifications
Consistent product quality is what separates a reliable supplier from a commodity producer. A modified starch production line should include quality checkpoints and compliance features from the start. Investing in the right modified starch processing equipment from the start reduces rework and warranty claims.
Key Quality Parameters
- Moisture content: Usually measured with a moisture analyzer. Target depends on application, often below 16%.
- Particle size: Tested with sieves or laser diffraction. Common target is 60–120 mesh.
- Viscosity: Measured with a Brookfield or Brabender viscometer under standardized conditions.
- Cold-water solubility: Critical for pregelatinized starches; often expressed as Water Solubility Index (WSI) and Water Absorption Index (WAI).
- Gelatinization degree: Indicates how completely starch granules have been disrupted.
- Color and odor: Visual and sensory checks detect overheating or contamination.
Safety Considerations
Starch dust is combustible. Dry grinding and conveying areas need dust collection systems, grounding, and explosion protection. Operators should wear appropriate PPE, and electrical equipment in dusty zones should meet the relevant hazard classification.
Certifications to Request
| Certification | Why It Matters |
|---|---|
| CE | Required for export to the European Economic Area. |
| ISO 9001 | Demonstrates quality management system. |
| SGS / BV | Independent inspection and verification for international buyers. |
| Food-grade SUS 304 | Safe contact surface for food and pharmaceutical products. |
| HACCP-aligned design | Supports food safety hazard control. |
Why Choose Shandong Loyal’s Modified Starch Production Line
Shandong Loyal Industrial Co., Ltd. has spent more than a decade designing, manufacturing, and exporting food processing machinery. We serve clients in over 50 countries. Our modified starch production lines are built on the same twin-screw extrusion expertise that powers our snack food machinery and pasta macaroni production line portfolios.
What Sets Our Lines Apart
- Turnkey design: We deliver complete lines from mixing to packaging, including installation, commissioning, and operator training.
- Customization: Screw profiles, barrel configurations, die designs, and control systems are tailored to your starch type and end product.
- Proven extrusion platform: Our PGS series pre-gel starch lines are already operating in food, pharmaceutical, cosmetic, and industrial applications worldwide.
- Quality materials: Food-grade SUS 304 contact surfaces and wear-resistant alloy steel extruder components.
- Global compliance: Lines can be configured for CE, ISO, SGS, and BV requirements.
- After-sales support: Spare parts, technical consultation, and remote troubleshooting keep your line running.
Whether you produce pregelatinized starch for instant foods, modified starch for oil drilling, or specialty starches for industrial binders, we can configure a line around your recipe, capacity, and budget.
Frequently Asked Questions
What is modified starch used for?
Modified starch is used as a thickener, stabilizer, binder, gelling agent, and texturizer across food, paper, oil drilling, textile, pharmaceutical, and construction industries. The exact function depends on the modification method and starch type.
How much does a modified starch production line cost?
Extrusion-based lines typically range from 15,000forsmall100–150kg/hsystemsto15,000forsmall100–150kg/hsystemsto150,000+ for large 1,000+ kg/h industrial lines. Wet chemical modification plants can exceed $500,000. Final cost depends on capacity, automation, materials, and customization.
What is the difference between modified starch and pregelatinized starch?
Pregelatinized starch is one type of modified starch produced by physically cooking and drying native starch so it dissolves in cold water. Modified starch is a broader category that also includes chemically and enzymatically treated starches.
How does a modified starch production line work?
A typical extrusion-based line works by mixing raw starch with water, extruding it under heat and pressure to modify its structure, drying the extruded product, grinding it to the desired particle size, and packaging it.
What raw materials can be used in a modified starch production line?
Common raw materials include corn starch, cassava starch, tapioca starch, potato starch, wheat starch, and various grain flours. Fresh roots or grains must be processed into starch before entering the modification line.
What capacity options are available?
Pilot lines start around 10–50 kg/h. Commercial extrusion lines commonly range from 100 kg/h to 1,500 kg/h, with larger wet-processing plants handling several tons per hour.
What certifications should a modified starch production line have?
For export and food use, look for CE, ISO 9001, SGS, BV, and food-grade SUS 304 construction. Pharmaceutical applications may require additional pharmacopeial compliance.
Conclusion
A modified starch production line is one of the most versatile investments a food or industrial ingredients producer can make. The right line turns low-cost native starch into high-value functional ingredients. It serves markets ranging from instant foods to oil drilling.
The key takeaways are simple:
- Match the modification method to your target product and market.
- Size capacity based on current demand with room to scale.
- Prioritize twin-screw extruder quality, process control, and after-sales support.
- Confirm certifications and material standards before purchasing.
- Calculate total cost of ownership, not just the equipment price.
If you are ready to explore a modified starch production line or learn more about the modified starch manufacturing process for your business, contact Shandong Loyal Industrial Co., Ltd. for a customized quote, process review, or trial production plan. Our engineering team will help you configure the right line for your product, capacity, and market.
