High-moisture meat analog production turns plant proteins into dense, fibrous, whole-cut meat replacements using twin-screw extrusion followed by a long cooling die. Unlike low-moisture textured vegetable protein, which puffs into dry granules, HMMA keeps moisture levels at 40–80% and locks aligned protein fibers into muscle-like layers. The result is a juicy, chewy product that can replace chicken breasts, steaks, and pulled meats rather than simply extending ground meat.
A plant-based food startup in California learned this distinction the expensive way. In 2024 the team bought a standard TVP line expecting to launch refrigerated plant-based steaks within six months. The first samples were dry, porous, and crumbly. Their extruder had no cooling die, so the superheated melt flashed into steam at the outlet and destroyed the fibrous structure they needed. Re-tooling with a high-moisture extrusion line added eight months and a second capital outlay to the project.
That mistake is more common than it should be because most online coverage of HMMA either reads like a scientific paper or looks like a bare product listing. This guide closes the gap. You will learn how high-moisture extrusion cooking (HMEC) creates meat-like fibers, what equipment a complete HMMA line needs, which raw materials work best, how to control the critical process parameters, and what scale of investment fits your factory.
Key Takeaways
- HMMA production uses high-moisture extrusion cooking (HMEC) with a cooling die to create fibrous whole-cut textures; TVP uses a simple die and dryer.
- Moisture during extrusion is 40–80%, barrel temperatures reach 140–160°C, and the cooling die drops the product below 100°C under pressure to prevent steam expansion.
- A complete line needs mixing, a co-rotating twin-screw extruder, a cooling die, cutting/forming, pasteurization or sterilization, and packing.
- Raw material choice (SPI, SPC, wheat gluten, pea, blends) drives fibration, water-holding, emulsification, and juiciness.
- Pilot HMMA lines from Chinese turnkey manufacturers start around 45,000for120–150kg/h;premiumWesternsystemscanexceed45,000for120–150kg/h;premiumWesternsystemscanexceed1.2 million per unit.
Not sure whether HMMA or TVP fits your product? Talk to our engineering team about your recipe and target market before you choose equipment.
What Is High-Moisture Meat Analog Production?
High-moisture meat analog production is the process of converting plant proteins into hydrated, meat-like products that can be sliced, shredded, and cooked like animal muscle. The term usually refers to high-moisture extrusion cooking, or HMEC, where a protein-water mixture is heated and sheared inside a twin-screw extruder and then shaped through a long, cooled die. The product exits the line with high moisture, a layered fibrous structure, and a texture much closer to whole cuts than to dry granules.
The category is growing fast. According to MarketIntelo, the global high-moisture extrusion equipment market reached roughly 0.8billionin2025andisforecasttohit0.8billionin2025andisforecasttohit1.5 billion by 2034 at a 7.2% compound annual growth rate. Plant-based meat is the fastest-growing application, expanding at about 11.4% CAGR and capturing roughly 36% of that equipment demand.
That growth is driven by the whole-cut trend. Consumers and foodservice buyers increasingly want plant-based steaks, fillets, and chicken-style cuts rather than crumbles or nuggets. HMMA is the most mature and scalable technology for delivering those products today. For a broader look at the full category, see our complete soy protein meat production guide.
How High-Moisture Meat Analog Production Builds Fibrous Texture
The magic of HMEC is not just the extruder. It is the combination of heat, shear, pressure, and controlled cooling that reorders plant proteins into aligned fibers.
Protein Denaturation and Cross-Linking
Inside the extruder barrel, the protein-water mixture is exposed to temperatures around 140–160°C and intense mechanical shear. The proteins unfold, exposing reactive sites. Hydrophobic interactions, hydrogen bonds, and disulfide bridges then create a viscoelastic protein network. A comprehensive review in IFT Comprehensive Reviews describes this as shear-induced structuring of a multi-phase system, where the dispersed phase deforms and aligns in the direction of flow before solidifying.
The Role of the Cooling Die
The cooling die is what separates HMMA from TVP. In low-moisture extrusion, the hot melt exits through a simple die into ambient pressure. The sudden pressure drop flashes water into steam, puffing the product into a dry, spongy matrix. In HMEC, the melt enters a long, jacketed cooling die held at roughly 20–25°C. The temperature falls below 100°C before the product reaches ambient pressure, so no steam forms. The material stays dense and is forced into laminar flow, aligning proteins into layers that solidify as they cool.
This produces an anisotropic structure, meaning the fibers run in one direction. That directional texture is what gives HMMA the pull, chew, and mouthfeel of whole-muscle meat.
Temperature Profile: Low-High-Low
HMEC uses a “low-high-low” temperature profile. The feed zone is relatively cool, the cooking zone reaches high temperature, and the cooling die brings the product down again. TVP uses a “low-high-high” profile because the product stays hot until it exits. That single difference is why the two technologies produce fundamentally different textures from the same raw materials.
How HMMA Is Made: The Production Process Step by Step
A high-moisture meat analog line follows a clear sequence from raw powder to packed product.
- Raw-material handling. Plant proteins, starches, fibers, and minor ingredients are metered into the system.
- Hydration and mixing. Water is added to reach 40–80% moisture. The blend is kneaded into a uniform dough.
- Twin-screw extrusion cooking. The dough is conveyed through heated barrels under heat, pressure, and shear. Proteins denature and begin to align.
- Cooling die forming. The melt passes through the long cooling die, where fibers form and the product solidifies under pressure.
- Cutting or forming. The continuous extrudate is cut to length, torn, or shaped into steaks, strips, or chunks.
- Post-extrusion treatment. Depending on the product, this may include marinating, cooking, pasteurizing, or sterilizing.
- Cooling. The product is cooled to safe packaging temperature.
- Packing. Vacuum or modified-atmosphere packaging preserves freshness because HMMA is sold chilled or frozen.
Each step must be tuned to the formulation. Change the raw material, and you usually need to adjust moisture, screw speed, barrel temperature, and cooling-die flow rate.
HMMA vs TVP: Which Technology Fits Your Business?
Choosing between high-moisture meat analog and textured vegetable protein (TVP) is the first equipment decision most buyers face. The two technologies share raw materials and extrusion principles, but they serve different markets.
| Factor | Low-Moisture TVP | High-Moisture Meat Analog (HMMA) |
|---|---|---|
| Moisture during extrusion | 10–40% | 40–80% |
| Die type | Simple die + rotary knives | Long cooling die |
| Final structure | Dry, porous, spongy | Dense, moist, fibrous |
| Texture match | Ground or minced meat | Whole-muscle cuts |
| Shelf life | Long; ambient storage | Short; refrigerated or frozen |
| Capital cost | Lower | Higher |
| Best markets | Extenders, canned foods, cost reduction | Premium retail and foodservice whole cuts |
If your customers want to reduce meat cost or add protein to ground applications, a soya chunks manufacturing machine making TVP is usually the better starting point. If your customers want refrigerated plant-based steaks, fillets, or chicken breasts, HMMA is the right path.
Ready to compare real line configurations? Contact our team for a free HMMA or TVP line assessment based on your target product.
Raw Materials for HMMA: From Soy to Blends
Raw-material selection is the second major decision after choosing HMMA technology. Protein content, water-holding capacity, and elasticity all affect the final texture.
Soy Protein Isolate (SPI)
SPI contains roughly 90% protein and produces the strongest, most elastic fibers. It is the premium choice for whole-cut analogs that must slice and chew like muscle meat. It is also the most expensive of the common soy inputs.
Soy Protein Concentrate (SPC)
SPC contains about 70% protein. It offers a middle ground between cost and texture, working well in products where some firmness is needed but maximum elasticity is not essential.
Defatted Soy Flour
Defatted flour contains roughly 50% protein. It is economical and works for simpler textures, but it generally does not deliver the fibrous whole-cut quality that SPI or SPC can achieve in HMEC.
Wheat Gluten
Wheat gluten adds elasticity through disulfide bonding. Many successful HMMA formulations use soy-wheat blends, such as ratios around 2:8 or 3:7 gluten to soy, to create highly texturized fibers. The GFI India Technological Review of High-Moisture Extrusion identifies four key properties to watch: fibration capacity, water-holding capacity, emulsification, and juiciness.
Pea, Fava, and Emerging Proteins
Pea and fava proteins support clean-label and allergen-free positioning. They can work in HMEC but often require recipe adjustments and wider raw-material tolerance from the extruder.
When Mei, an R&D manager at a food-ingredient company in China, first moved into HMMA, she assumed SPI alone would give the best result. After trials on a pilot twin-screw line, she found that a soy-wheat blend produced stronger fiber alignment at roughly 15% lower ingredient cost. That formulation became the basis for her company’s first commercial whole-cut product.
HMMA Equipment and Complete Production Line Design

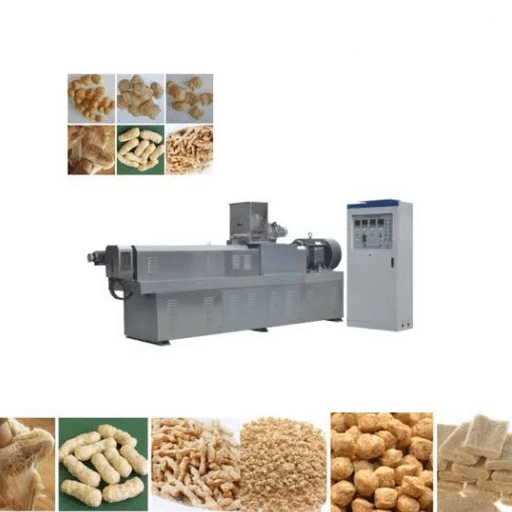

A complete high-moisture meat analog production line centers on a co-rotating twin-screw extruder with a cooling die. Supporting systems handle preparation, forming, thermal treatment, and packaging. If you are new to extrusion, our overview of turnkey food production lines explains how each stage fits together.
Core Line Components
- Powder mixer / hydration system for uniform dough
- Screw conveyor or loss-in-weight feeder for stable flow
- Co-rotating twin-screw extruder with independent barrel heating and cooling zones
- Long cooling die with temperature-controlled channels
- Cutter or forming unit for steaks, strips, chunks, or shreds
- Cooking / pasteurization or sterilization system
- Cooling conveyor
- Vacuum or modified-atmosphere packing machine
- PLC/HMI control system, typically Siemens-based, for recipe management and traceability
Capacity and Investment Ladder
| Scale | Capacity | Indicative Investment |
|---|---|---|
| Lab / pilot | 5–50 kg/h | R&D budget |
| Small commercial | 100–150 kg/h | Around 45,000–45,000–50,000 |
| Medium | 300–600 kg/h | 150,000–150,000–600,000 |
| Industrial Western OEM | 500–2,000+ kg/h | 1.2million–1.2million–4.5 million |
Premium Western brands such as Coperion, Wenger, Bühler, and Clextral offer deep process engineering but at a much higher price point. Chinese turnkey lines deliver competitive output at a fraction of the cost for producers who have strong formulation support and clear process targets. Our food extruder machine range is built with modular screws, food-grade SUS304/316 contact parts, and Siemens PLC controls for exactly this kind of flexible production.
Want a line configured to your recipe? Request a detailed HMMA line quote and we’ll match capacity, raw material, and budget.
Critical Process Parameters to Control
Reproducible HMMA texture depends on controlling several interacting variables.
- Moisture content. Typically 40–80% on a wet basis. Higher moisture generally produces softer, juicier products but requires tighter die control.
- Protein concentration. Around 60–70% on a dry basis is common for strong fiber formation.
- Barrel temperature. Most cooking zones run at 140–160°C.
- Cooling die temperature. Held near 20–25°C to prevent flash evaporation.
- Screw speed and configuration. These control shear, mixing intensity, and specific mechanical energy (SME).
- Feed rate. Must match screw speed and die capacity to maintain stable pressure.
Small changes in any of these parameters can shift texture from tender and fibrous to rubbery or spongy. That is why pilot trials with the actual raw material are essential before committing to a commercial line.
Whole-Cut Applications and Scale-Up Strategy
HMMA excels where TVP cannot. Common applications include plant-based chicken breasts, steaks, fillets, pulled pork, and shredded beef analogs. These products are usually sold fresh or frozen to retail, foodservice, or co-manufacturers.
Scaling from lab to commercial production is where many projects stumble. A formulation that works on a 10 kg/h pilot extruder may behave differently on a 300 kg/h line because residence time, shear history, and cooling rate scale non-linearly. The safest path is to run trials at increasing throughput on the same equipment family, then lock in the recipe before full production.
Carlos, a food entrepreneur in Mexico, started with a 100 kg/h HMMA pilot line to test soy-pea blends for a plant-based chicken strip. After six months of recipe refinement, he moved to a 400 kg/h commercial line using the same extruder model family. Because the screw geometry and die design scaled consistently, his team reached target texture within three commissioning runs instead of the typical several weeks of re-tuning.
Frequently Asked Questions
What is the difference between HMMA and TVP?
HMMA is produced with high-moisture extrusion and a cooling die, giving it dense, fibrous, whole-cut texture. TVP is produced with low-moisture extrusion and a simple die, creating dry, porous granules that must be rehydrated.
Why does high-moisture extrusion need a cooling die?
The cooling die keeps the product under pressure while dropping its temperature below 100°C. This prevents water from flashing into steam at the outlet and forces the protein mass into aligned, fibrous layers.
What raw materials work best for HMMA?
Soy protein isolate, soy protein concentrate, wheat gluten, and soy-wheat blends are the most common. Pea and fava proteins are growing options for allergen-friendly products.
How much does an HMMA production line cost?
Small commercial Chinese turnkey lines start around 45,000for120–150kg/h.Mediumlinesrunfrom45,000for120–150kg/h.Mediumlinesrunfrom150,000 to 600,000.PremiumWesternindustrialsystemscanexceed600,000.PremiumWesternindustrialsystemscanexceed1.2 million per unit.
Can extrusion make whole-cut plant-based chicken or steak?
Yes. High-moisture extrusion is currently the most mature and scalable method for producing fibrous whole-cut plant-based meats that slice and chew like animal muscle.
Conclusion
High-moisture meat analog production is the technology that moves plant-based meat from crumbles to whole cuts. The cooling die is the critical component that locks aligned protein fibers into a dense, juicy structure. Success depends on choosing the right extruder and die combination, matching raw materials to texture goals, and controlling moisture, temperature, and shear through every stage of the line.
The market is expanding quickly. Equipment demand is projected to grow from 0.8billionin2025to0.8billionin2025to1.5 billion by 2034, with plant-based meat leading that growth. Producers who invest in the right HMMA line now can capture premium retail and foodservice markets before competition hardens.
At Shandong Loyal Industrial, we design and build turnkey high-moisture meat analog production lines for producers worldwide. With over 10 years of extrusion experience, CE-certified machinery, and full support from layout design to operator training, we help you move from recipe to commercial production with confidence. Contact us today for a customized HMMA line configuration and quote.
